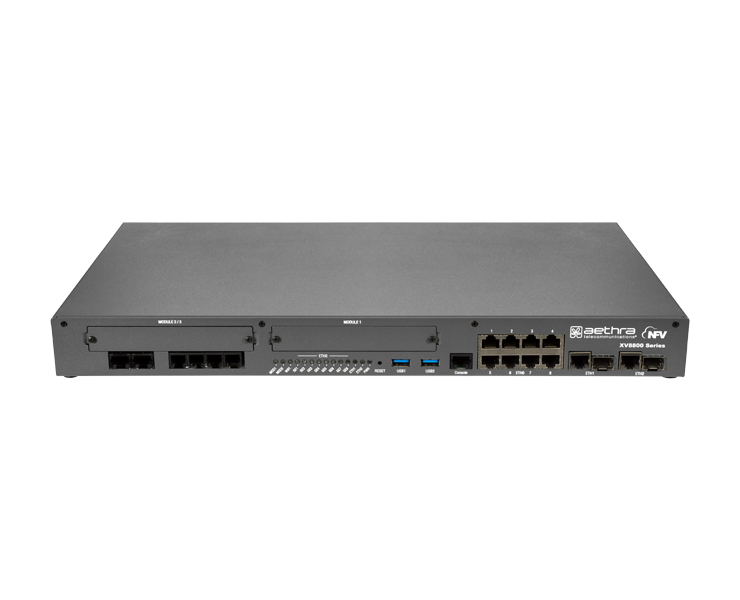

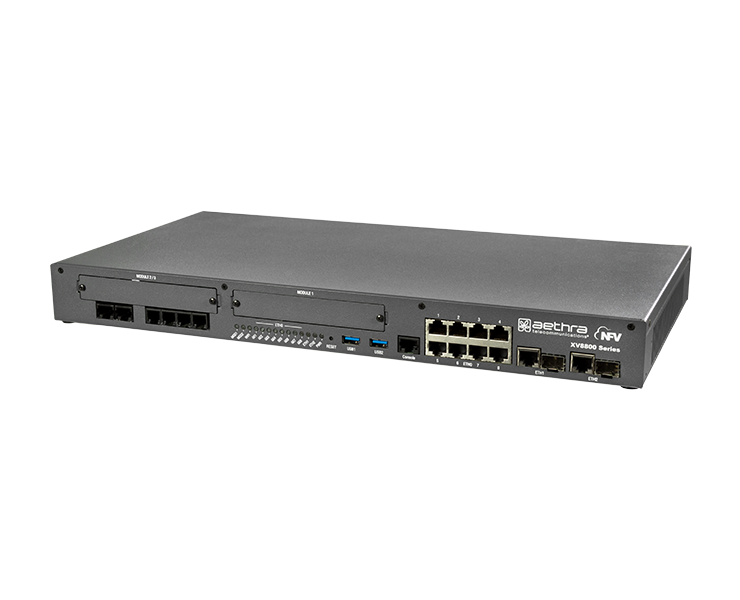

XV8800 Series

XV8800plus-VG-S4P1WAC

SKU: XV8800plus-VG-S4P1WAC

Based on the latest Intel x86 2-core, 4-core and 8-core architectures and leveraging cutting edge datapath acceleration and crypto technologies, the XV8800 Series Universal CPE is a fully integrated access platform with embedded fixed and mobile WAN interfaces.
The configuration includes 2x Ethernet / fiber WANs, 4-pair SHDSL.bis and integrated ISDN PRI Voice Gateway for a smooth transition to virtualization.

INTERFACES

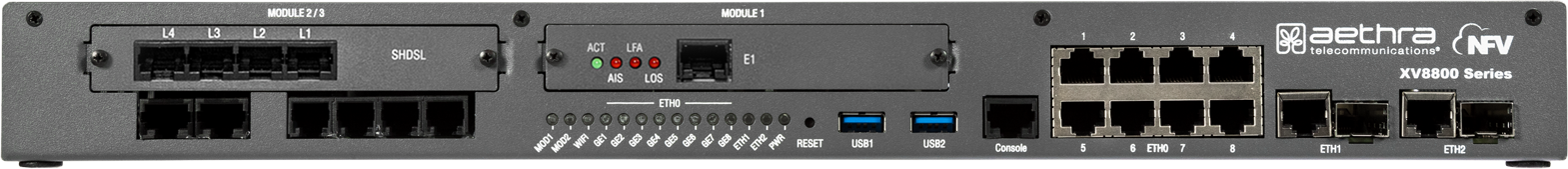

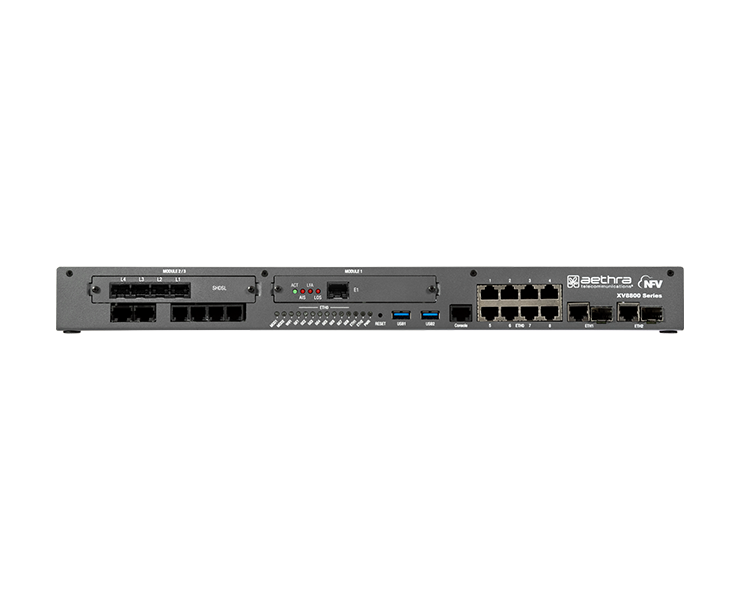

XV8800plus-VG-S4P1WAC

Dual GE Combo and 4-pair SHDSL.bis, LTE (optional), 8-port GE LAN switch and integrated WiFi dual radio 802.11bgn and 802.11ac. Integrated 4-port analog, 2 port ISDN BRI and 1 port ISDN PRI voice gateway.

Solutions

SMART VIRTUALIZATION Smart Virtualization for Third Party Applications Onboarding

System resources can be segmented, dynamically configured and reserved either for the router itself or for the virtualization engine. Virtual Network Functions such as Firewalls, SD-WAN clients and WAN Accelerators can be hosted inside the access router as KVM-compatible virtual machines and inserted in the service chain.

Videos

XV8800 is also available as the first-on-the-market NFV / SDN White Box to seamlessly integrate SHDSL Access Network technologies in the same box.
Tech Specs FIXED WAN
■ SHDSL (ATM and EFM)4-pair
■ GEYes
■ SFPYes
■ Dual Combo GEYes
MOBILE WAN
■ LTEOptional
LAN
■ GE SWITCH (ports)8
WiFi
■ 802.11 b/g/nYes
■ 802.11 acYes
USB
■ 3.02
ANALOG VOICE PORTS
■ FXS4
ISDN VOICE PORTS
■ BRI2
■ PRI1
VOICE CHANNELS
■ Voice channels30
UNIVERSAL CPE
■ ProcessorIntel Atom C3000
■ # of cores2 / 4 / 8
■ Frequency1.70 GHz / 2.20 GHz
■ Memory 4 / 8 / 16 GB
■ Storage120GB
■ Max # of VNFs0 / 2 / 4
Downloads
Solution Brief - NFV / SDN Universal CPE - White Papers Download
XV8800plus Series Datasheet - Datasheets Login to download
